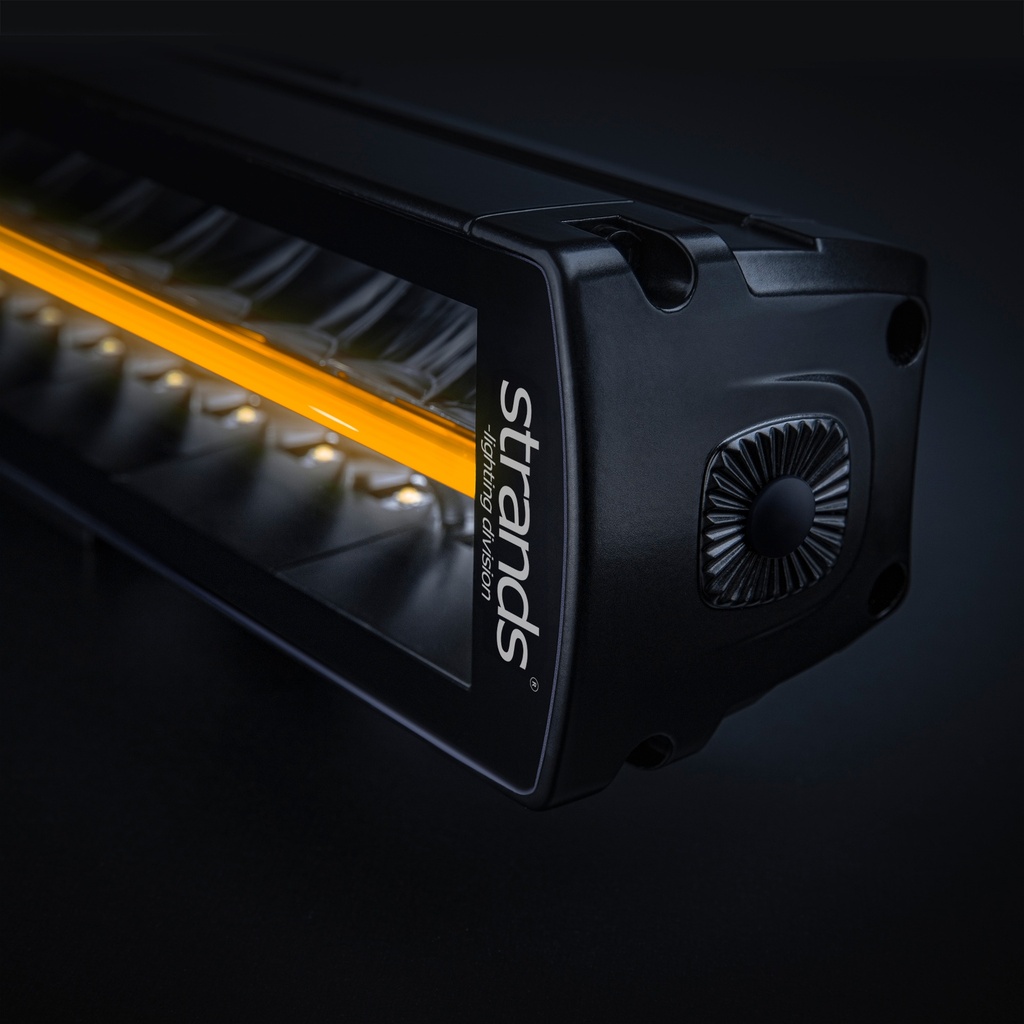

Siberia Double Row LED Bar 42"
Amber / Orange & White Position Light
10-40V | 196W | 10.823 Lumens
IP67/69K | ECE R112, R10
Dimensions: L1072 x D71.6 x H76mm
Mounting is possible on all vehicles.
Description:
- Voltage 10-40V DC
- Theoretical effect 400W
- Consumption 200W
- Consumption specific function White position light: 9,5W, Amber position light: 30W
- Theoretical lumen 32000lm
- Actual lumen 10823lm
- 1 lux @ 419m
- Color temperature 5700K
- Beam pattern Optimized beam
- Beam angle 46,6°
- Connection Cable
- Cable length 2500mm
- Color housing Black
- Color lens Clear
- Material bracket Stainless steel
- Material housing/chassi Aluminium
- Material lens Polycarbonate
- Length 1072mm
- Depth 71,6mm
- Height 76mm
- Height including bracket 89mm
- Weight 5,13kg
- IP-class IP67/69K
- Operating temperature -20 - +45°C
- E-approved Yes
- According to regulation ECE R7, R112
- Reference number 50
- EMC ECE R10
