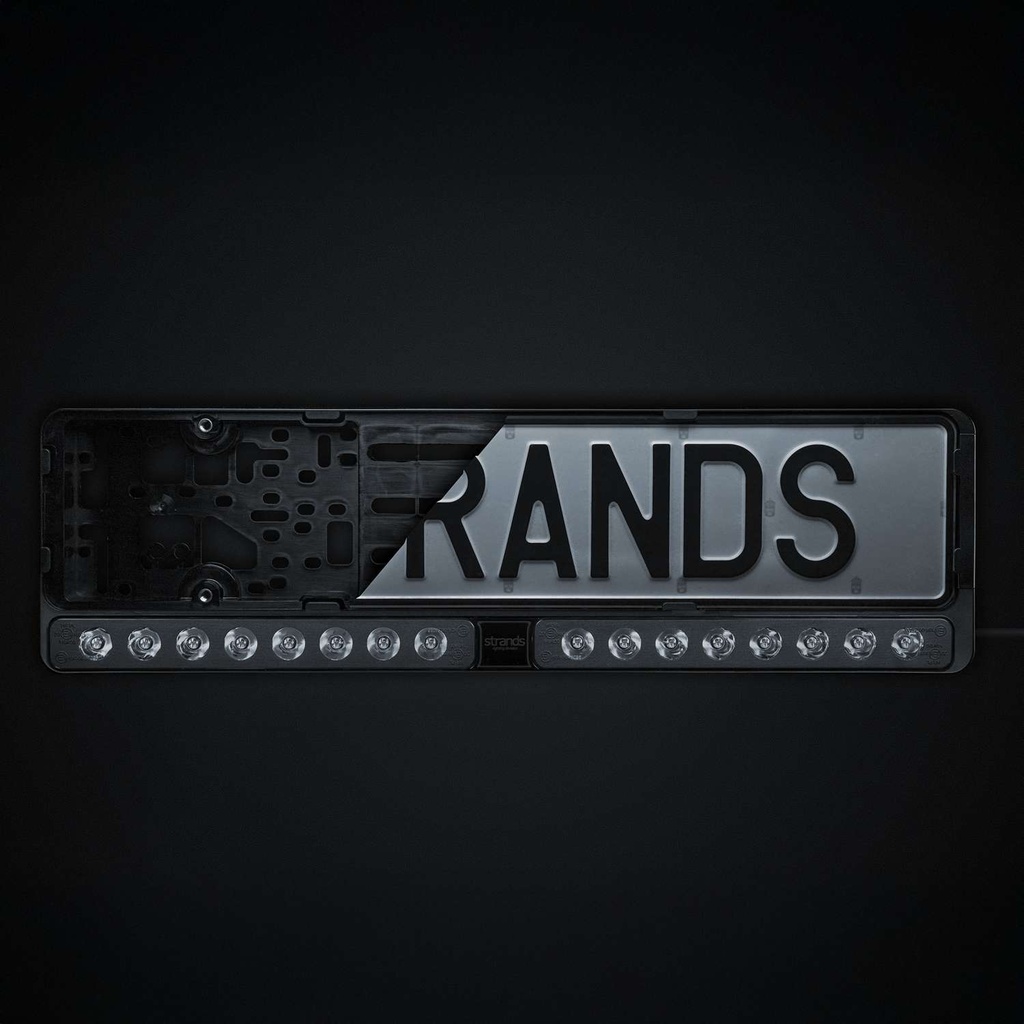

Nuuk E-Line DUO License Plate Holder LED Bar 2x10"
Nuuk E-Line DUO Black License Plate LED Bar
9-36V, 108W, IP68/IP69K, 8100 Lumen
Afmetingen: B535 x H154,4 x D36mm
ECE R149, ECE R10, 2 x Ref. 20
Mounting Material Included
| Manufacturer | Model | Start Year | End Year |
|---|
Description:
Improve your night drive with 8100 actual lumens and 438-meter visual range @ 1 Lux. The Nuuk E-Line Duo Black has an optimized beam and 5000 K color temperature, greatly improving forward and sideways visibility. It’s E-approved R149 with reference number 2×20 and is used with 9-36 V.
This double light source is a requirement for some European countries. The low power consumption of only 108 W makes it suitable for electric cars, and the integrated license plate holder ensures it can be installed without unnecessary impact on your vehicle. Simply replace your license plate holder with a Nuuk E-Line Duo.
It has a new black lens that gives a smooth look that blends with any vehicle. The innovative design and easy installation guarantee that any driver can get a considerable boost in safety and visibility.
Voltage 9-36V DC
Theoretical effect 110W
Consumption 108W
Theoretical lumen 9000lm
Actual lumen 8100lm
1 lux @ 438m
Color temperature 5000K
Beam pattern Optimized beam
Beam angle 15,2°
Connection DT-3PIN
Cable length 2500mm
Color housing Black
Color lens Black
Color LED´s White
Material bracket Plastic
Material housing/chassi Aluminium
Material lens Polycarbonate
Length 535mm
Depth 36mm
Height 154,4mm
Height including bracket 154,4mm
Weight 1,4kg
IP-class IP68/69K
Operating temperature -40 - +60°C
E-approved Yes
According to regulation ECE R149
Reference number 20 （for one 10")
EMC ECE R10
